Line Sources
...design sound column for conference rooms, class rooms, houses of worship, residential and home theater and other representative premises. The ribbon-like, one-piece fullrange driver provides a wide horizontal dispersion angle even at high frequencies while the narrow vertical coverage ensures excellent voice reproduction making the speaker perfect for rooms with long reverberation times ...
VoicePoint line sources
Frequency range: 100Hz to 20KHz
Performance: 160W/ 4 Ohm (LS200/8)
Efficiency: 95dB 1W/1m (LS200/8)
Line design
Dimensions: 200cm x 6cm x 13cm (custom heigth optional)
Body: anodized aluminum, black
Grille: metal, black (options available)
Side inlay: carbon gossy (options available)
Mounting option: InWall and OnWall line sources available
Base design
Dimensions/ finish: 45cm round / wood black paint (options available)
line source model range
VoicePoint LS 300/12 - 240W / 8 Ohm
VoicePoint LS 200/8 - 160W / 4 Ohm
VoicePoint LS 150/4 - 80W / 4 Ohm
VoicePoint LS 100/2 - 40W / 8 Ohm
Contact us for your individual solution:request@voicepoint.de
multiple line sources for a bigger audience...

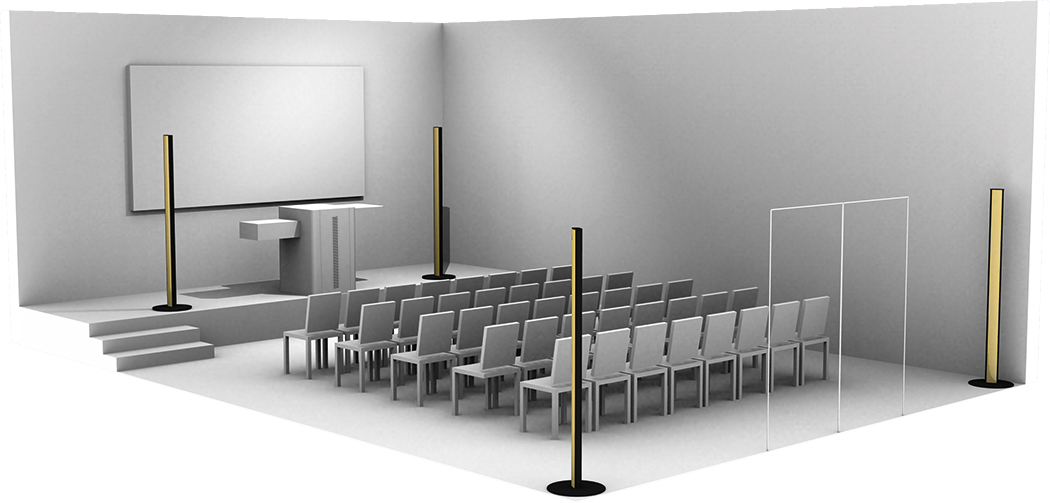

...is ideally suited for conference and meeting rooms and sets a new standard for visible
integration ...

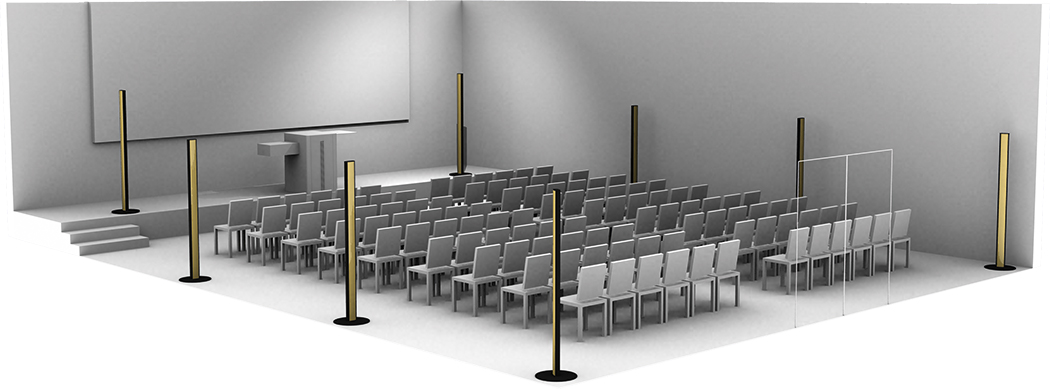

typical application for high-end auditorium
...unique full-range, multi-drive unit for high power capability, large dynamic headroom and low distortions ...

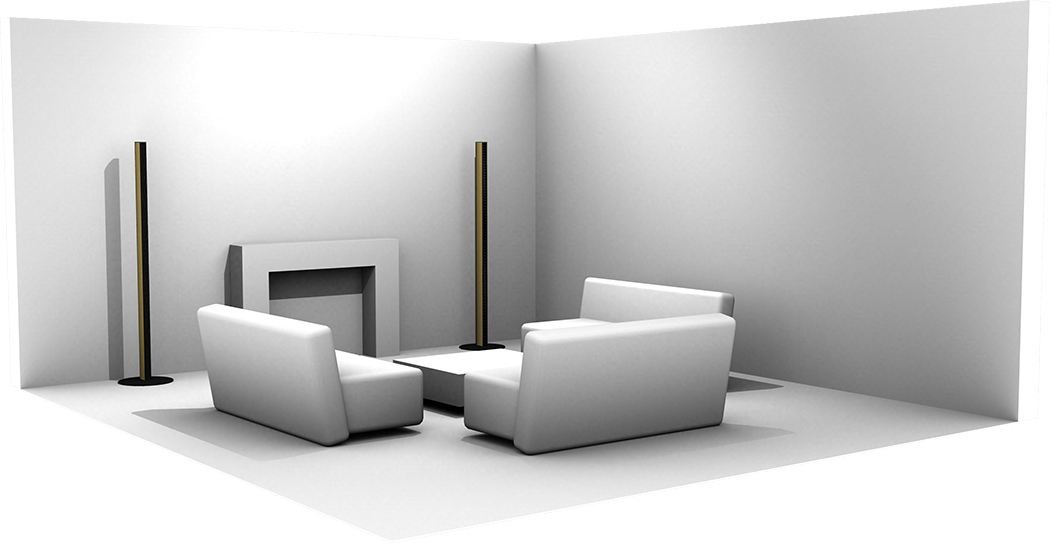

a perfect solution for lounge, spa, private cinemas ...
... available with a wide selection of finish options to match with luxury interior environments ...
LS200/8
Carbon glossy Inlay
Line Source Decore Collection
laterel design of the line-sources with Abet laminate and custom made
Grill standard black
.jpg)
Custom side inlay: Carbon glossy
P1: Satinata Steel
P2: Marrakech Steel
P2: Casablanca Steel
P2: Agadir Steel
P1: Satinata Gold
P2: Marrakech Gold
P2: Casablanca Gold
P2: Agadir Gold
P1: Satinata Silber
P2: Marrakech Silber
P2: Casablanca Silber
P2: Agadir Silber
Line-Source Models
| Model | Power | Efficiency | Response | Measure HxWxD | Base plate |
| VoicePoint LS 300/12 | 240W/ 8Ohm | 95dB 1W/1m | 100Hz bis 20.000Hz | 3000 x 60 x 130mm | 550mm round |
| VoicePoint LS 200/8 | 160W/ 4Ohm | 92dB 1W/1m | 100Hz bis 20.000Hz | 2000 x 60x 130mm | 450mm round |
| VoicePoint LS 150/4 | 80W/ 8Ohm | 88dB 1W/1m | 120Hz bis 20.000Hz | 1500 x 60 x 130mm | 450mm round |
| VoicePoint LS 100/2 | 40W/ 4Ohm | 85dB 1W/1m | 150Hz bis 20.000Hz | 1000 x 60 x 130mm | 350mm round |
For the LineSources, there are three base options:
Standard base black
-450mm - round 35mm high
Design base black
-with selectable face veneer
-width 450mm x 516mm – 35mm high
Design subwoofer base
-Black with selectable face veneer
-flat 109mm - 450mm x 516mm wide
GLL file for EASE
Download
OEM Projects
ILS24 - with VoicePoint Technolgie
For the international manufacturer www.intelligentlecterns.com Voicepoint has developed a speaker module for the ILS24 lectern. The LS200 will work perfectly as side fills, while the console is the acoustic center. The best possible speech intelligibility in a minimal space.
Line Source for Home-Cinemas
The Line Sources of Voicepoint are perfect for the home theater application.
As LCR behind an acoustically transparent screen. Detached as left and right or perfect for the surround channels. Perfect because an extremely uniform dispersion pattern in the horizontal plane held 180 ° to 10kHz.
The dipoles typically used to ensure that by their phase-twisted chassis provice a diffuse surround experience. The Voicepoint Line Sources offer the precision of a direct radiating speaker - but the subjective openness and size of the surround events because of their uniform and wide sound dispersion.
IMPORTANT: The line souces LS200/12 LS200/16 and can be operating in a THX Setup down to 80 Hz. In any case, the use of a subwoofer is necessary.
Stereo-Sound for Lounge & TV
Line source or sound bar?. We solve the disadvantages of a classical sound bar. Although there are now sound bars that are even available on the width of the display, but you still have the reduced stereo base width > because the width of the screen determines the limit. Furthermore classical sound bars always need an external subwoofer -> that had to be hidden. In the below pictured VoicePoint, the base is equal to the subwoofer. Due to the very wide horizontal disperation characteristic, a center is not needed. In terms of design VoicePoint fallows the way to adjust the speakers to the Interior and not to the perishables TV. Therefore the question of what to do with the made-to-messure sound bar, if a new TV must be purchased does not arise.
This line-source setup is ideal for background sound and as a speaker to the speaker for TV.
For this application, the new subwoofer base is used. Just about 10 cm in height and 45x45cm footprint, it is only slightly larger than the standard foot.
.jpg)
The subwoofer base houses a 20cm woofer, which extends the range of low frequencies. Ideally this combination gets connected to the appropriate LineSource amplifier .
